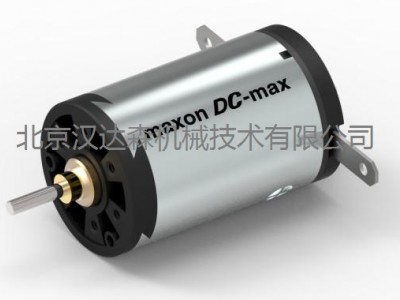

瑞士maxon motor直流电机DC-max 16 S Ø16 mm
薛时通 QQ:2850590583 手机:18518172429 电话:010-64717020-113 传真:010-84786709-666 邮件:sales10@handelsen.cn |
额定电压值 | |
额定电压 | 6 V |
空载转速 | 7890 rpm |
空载电流 | 14.8 mA |
额定转速 | 4840 rpm |
额定转矩(最大连续转矩) | 4.04 mNm |
额定电流(最大连续负载电流) | 0.575 A |
堵转转矩 | 10.5 mNm |
堵转电流 | 1.46 A |
最大效率 | 81 % |
特征值 | |
相间电阻 | 4.1 Ω |
相间电感 | 0.14 mH |
转矩常数 | 7.19 mNm/A |
转速常数 | 1330 rpm/V |
转速/转矩斜率 | 758 rpm/mNm |
机械时间常数 | 8.87 ms |
转子惯量 | 1.12 gcm² |
热参数 | |
外壳-环境热阻 | 29.8 K/W |
绕组-外壳热阻 | 5.5 K/W |
绕组热时间常数 | 5.47 s |
电机热时间常数 | 288 s |
环境温度 | -30...+65 °C |
绕组最高允许温度 | +85 °C |
机械参数 | |
最大允许转速 | 11000 rpm |
轴向间隙 | 0.05 - 0.15 mm |
径向间隙 | 0.025 mm |
最大轴向载荷(动态) | 2.2 N |
最大轴向压配合力(静态) | 30 N |
(静态,支撑轴) | 200 N |
最大径向载荷 | 7.8 N, 5 mm(距离法兰) |
其它参数 | |
极对数 | 1 |
换向片数量 | 7 |
高温高压灭菌次数 | 0 |
产品 | |
重量 | 23 g |
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷 CLL Tahoma">,滚珠轴承 16 mm 2 W 6 V 7890 rpm 4.04 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷 CLL Tahoma">,滚珠轴承 16 mm 2 W 12 V 7550 rpm 3.91 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷 CLL Tahoma">,滚珠轴承 16 mm 2 W 24 V 7470 rpm 3.78 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷 CLL Tahoma">,滑动轴承 16 mm 2 W 6 V 7890 rpm 4.06 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷 CLL Tahoma">,滑动轴承 16 mm 2 W 12 V 7560 rpm 3.92 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷 CLL Tahoma">,滑动轴承 16 mm 2 W 24 V 7470 rpm 3.8 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 16 mm 3 W 6 V 9960 rpm 3.79 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 16 mm 3 W 12 V 9960 rpm 4.41 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 16 mm 3 W 24 V 10000 rpm 4.87 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">,石墨电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 16 mm 3 W 6 V 9870 rpm 3.71 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">,石墨电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 16 mm 3 W 12 V 9860 rpm 4.31 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">,石墨电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 16 mm 3 W 24 V 9920 rpm 4.76 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷CLL Tahoma">, Tahoma;mso-hansi-font-family:Tahoma">滚珠轴承 22 mm 5 W 6 V 5490 rpm 8.55 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷CLL Tahoma">, Tahoma;mso-hansi-font-family:Tahoma">滚珠轴承 22 mm 5 W 12 V 5890 rpm 10.3 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷CLL Tahoma">, Tahoma;mso-hansi-font-family:Tahoma">滚珠轴承 22 mm 5 W 24 V 5090 rpm 10.4 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷CLL Tahoma">, Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 22 mm 5 W 6 V 5480 rpm 8.54 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷CLL Tahoma">, Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 22 mm 5 W 12 V 5890 rpm 10.3 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷CLL Tahoma">, Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 22 mm 5 W 24 V 5090 rpm 10.4 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">,石墨电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滚珠轴承 22 mm 8 W 6 V 7040 rpm 11.3 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">,石墨电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滚珠轴承 22 mm 8 W 12 V 7140 rpm 12.5 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">,石墨电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滚珠轴承 22 mm 8 W 24 V 7340 rpm 11.8 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">,石墨电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 22 mm 8 W 6 V 7030 rpm 11.3 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">,石墨电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 22 mm 8 W 12 V 7140 rpm 12.5 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">,石墨电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 22 mm 8 W 24 V 7330 rpm 11.8 mNm
DC-max 26 S Ø26 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷CLL Tahoma">, Tahoma;mso-hansi-font-family:Tahoma">滚珠轴承 26 mm 9 W 12 V 4460 rpm 21 mNm
DC-max 26 S Ø26 mm Tahoma">,稀有金属电刷CLL mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">, Tahoma">滚珠轴承 26 mm 9 W 24 V 4370 rpm 28.9 mNm
DC-max 26 S Ø26 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷CLL Tahoma">, Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 26 mm 9 W 12 V 4460 rpm 20.8 mNm
DC-max 26 S Ø26 mm Tahoma;mso-hansi-font-family:Tahoma">,稀有金属电刷CLL Tahoma">, Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 26 mm 9 W 24 V 4370 rpm 28.8 mNm
DC-max 26 S Ø26 mm Tahoma;mso-hansi-font-family:Tahoma">,石墨电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滚珠轴承 26 mm 22 W 24 V 8930 rpm 26.6 mNm
DC-max 26 S Ø26 mm Tahoma;mso-hansi-font-family:Tahoma">,石墨电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滚珠轴承 26 mm 22 W 48 V 8740 rpm 29.4 mNm
DC-max 26 S Ø26 mm Tahoma;mso-hansi-font-family:Tahoma">,石墨电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 26 mm 22 W 24 V 8920 rpm 26.3 mNm
DC-max 26 S Ø26 mm Tahoma;mso-hansi-font-family:Tahoma">,石墨电刷, mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑动轴承 26 mm 22 W 48 V 8730 rpm 28.3 mNm
